Open Rowing Monitor
Open Rowing Monitor is a free and open source performance monitor for rowing machines. It upgrades almost any rowing machine into a smart trainer that can be used with training applications and games.
It is a Node.js application that runs on a Raspberry Pi and measures the rotation of the rower's flywheel (or similar) to calculate rowing specific metrics, such as power, split time, speed, stroke rate, distance and calories. It can share these metrics for controling games and record these metrics for further analysis.
It is currently developed and tested with a Sportstech WRX700 water-rower and a Concept2 air-rower. In the past, it was also tested extensively on a NordicTrack RX-800 hybrid air/magnetic rower. But it should run fine with any rowing machine that uses some kind of damping mechanism, as long as you can add something to measure the speed of the flywheel. It has shown to work well with DIY rowing machines like the Openergo, providing the construction is decent.
Features
Open Rowing Monitor aims to provide you with metrics directly, connect to apps and games via bluetooth and allow you to export your data to the analysis tool of your choice. The following items describe most of the current features in more detail.
Rowing Metrics
Open Rowing Monitor implements a physics model to simulate the typical metrics of a rowing boat based on the pull on the handle. The physics model can be tuned to the specifics of a rower by changing some model parameters in the configuration file, where we also provide these settings for machines known to us.
Open Rowing Monitor displays the following key metrics on the user interfaces:
- Distance rowed (meters)
- Training Duration
- Power (watts)
- Pace (/500m)
- Strokes per Minute (SPM)
- Calories used (kcal)
- Total number of strokes
- Heart Rate (supports BLE and ANT+ heart rate monitors, ANT+ requires an ANT+ USB stick)
It calculates and can export many other key rowing metrics, including Drag factor, Drive length (meters), Drive time (milliseconds), Recovery Time (milliseconds), Average handle force (Newton), Peak handle force (Newton) and the associated handle force curve, handle velocity curve and handle power curve.

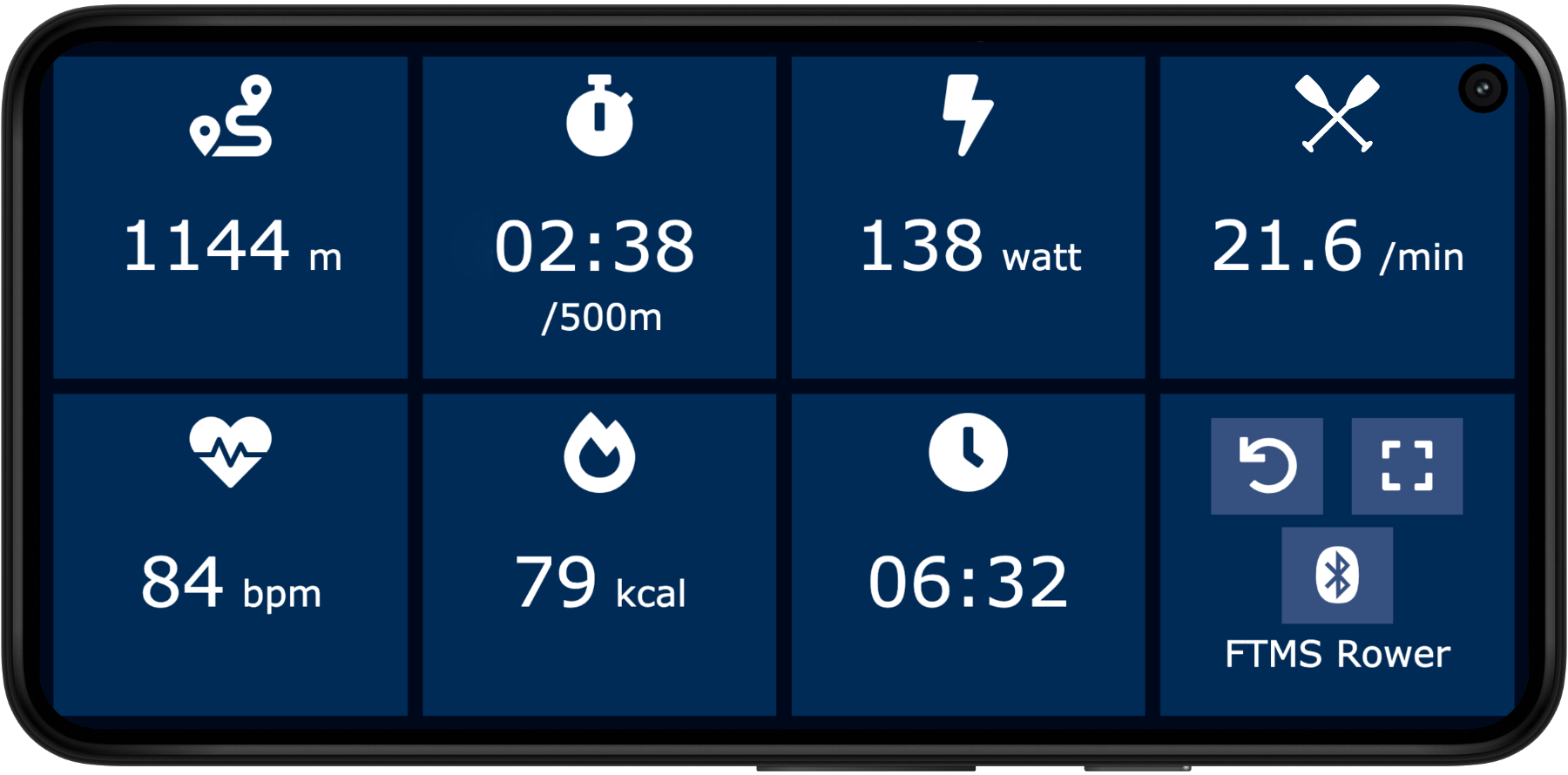

Web Interface
The web interface visualizes the basic rowing metrics on any device that can run a web browser (i.e. a smartphone that you attach to your rowing machine while training). It uses web sockets to show the rowing status in realtime. It can also be used to reset the training metrics and to select the type of bluetooth connection.
If you connect a physical screen directly to the Raspberry Pi, then this interface can also be directly shown on the device. The installation script can set up a web browser in kiosk mode that runs on the Raspberry Pi.
Bluetooth Low Energy (BLE)
Open Rowing Monitor also implements different Bluetooth Low Energy (BLE) protocols so you can use your rowing machine with different fitness applications. Some apps use the Fitness Machine Service (FTMS), which is a standardized GATT protocol for different types of fitness machines. Other apps prefer to see a Concept 2 PM5. To help you connect to your app and game of choice, Open Rowing Monitor currently supports the following Bluetooth protocols:
-
Concept2 PM: Open Rowing Monitor implements part of the Concept2 PM Bluetooth Smart Communication Interface Definition. This is still work in progress and only implements the most common parts of the spec, so it is not guaranteed to work with all applications that support C2 rowing machines. Our interface currently can only report metrics, but can't recieve commands and session parameters from the app yet. It is known to work with EXR and all the samples from The Erg Arcade, for example you can row in the clouds.
-
FTMS Rower: This is the FTMS profile for rowing machines and supports all rowing specific metrics (such as stroke rate). So far not many training applications for this profile exist, but the market is evolving. We've successfully tested it with EXR, MyHomeFit and Kinomap.
-
FTMS Indoor Bike: This FTMS profile is used by Smart Bike Trainers and widely adopted by training applications for bike training. It does not support rowing specific metrics. But it can present metrics such as power and distance to the biking application and use cadence for stroke rate. So why not use your virtual rowing bike to row up a mountain in Zwift, Bkool, The Sufferfest or similar :-)
-
BLE Cycling Power Profile: This Bluetooth simulates a bike, which allows you to connect the rower to a bike activity on your (mostly Garmin) sportwatch. It will translate the rowing metrics to the appropriate fields. This profile is only supported by specific watches, so it might provide a solution.
-
BLE Cycling Speed and Cadence Profile: used for older Garmin Forerunner and Garmin Venu watches and similar types, again simulating a bike activity. Please note to set the wheel circumference to 10mm to make this work well.
Export of Training Sessions
Open Rowing Monitor is based on the idea that metrics should be easily accessible for further analysis. Therefore, Open Rowing Monitor can create the following files:
-
Training Center XML files (TCX): These are XML-files that contain the most essential metrics of a rowing session. Most training analysis tools will accept a tcx-file. You can upload these files to training platforms like Strava, Garmin Connect or Trainingpeaks to track your training sessions;
-
RowingData files, which are comma-seperated files with all metrics Open Rowing Monitor can produce. These can be used with RowingData to display your results locally, or uploaded to RowsAndAll for a webbased analysis (including dynamic in-stroke metrics). The csv-files can also be processed manually in Excel, allowing your own custom analysis. Please note that for visualising in-stroke metrics in RowsAndAll (i.e. force, power and handle speed curves), you need their yearly subscription;
-
Raw flywheel measurements of the flywheel, also in CSV files. These files are great to start to learn about the specifics of your rowing machine (some Excel visualistion can help with this).
Uploading your sessions to Strava is an integrated feature, for all other platforms this is currently a manual step. Uploading to RowsAndAll can be automated through their e-mail interface, see this description. The Open rowing Monito installer can also set up a network share that contains all training data so it is easy to grab the files from there and manually upload them to the training platform of your choice.
Installation
You will need a Raspberry Pi Zero W, Raspberry Pi Zero 2 W, Raspberry Pi 3 or a Raspberry Pi 4 with a fresh installation of Raspberry Pi OS Lite for this (the 64Bit kernel is preferred). Connect to the device with SSH and initiate the following command to install Open Rowing Monitor as an automatically starting system service:
/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/laberning/openrowingmonitor/HEAD/install/install.sh)"
Also have a look at the Detailed Installation Instructions for more information on the software installation and for instructions on how to connect the rowing machine.
How it all started
Lars originally started this project, because his rowing machine (Sportstech WRX700) has a very simple computer and he wanted to build something with a clean interface that calculates more realistic metrics. Also, this was a good reason to learn a bit more about Bluetooth and all its specifics.
The original proof of concept version started as a sketch on an Arduino, but the web frontend and BLE needed the much more powerful Raspberry Pi. Maybe using a Raspberry Pi for this small IoT-project is a bit of an overkill, but it has the capacity for further features such as syncing training data or rowing games. And it has USB-Ports that you can use to charge your phone while rowing :-)
Further information
This project is already in a very usable stage, but some things are still a bit rough on the edges. More functionality will be added in the future, so check the Development Roadmap if you are curious. Contributions are welcome, please read the Contributing Guidelines first.
Feel free to leave a message in the GitHub Discussions if you have any questions or ideas related to this project.
Check the advanced information on the Physics behind Open Rowing Monitor.
This project uses some great work by others, see the Attribution here.
